Ventilation systems

01 / 10

Variable air volume ventilation

VAV ventilation

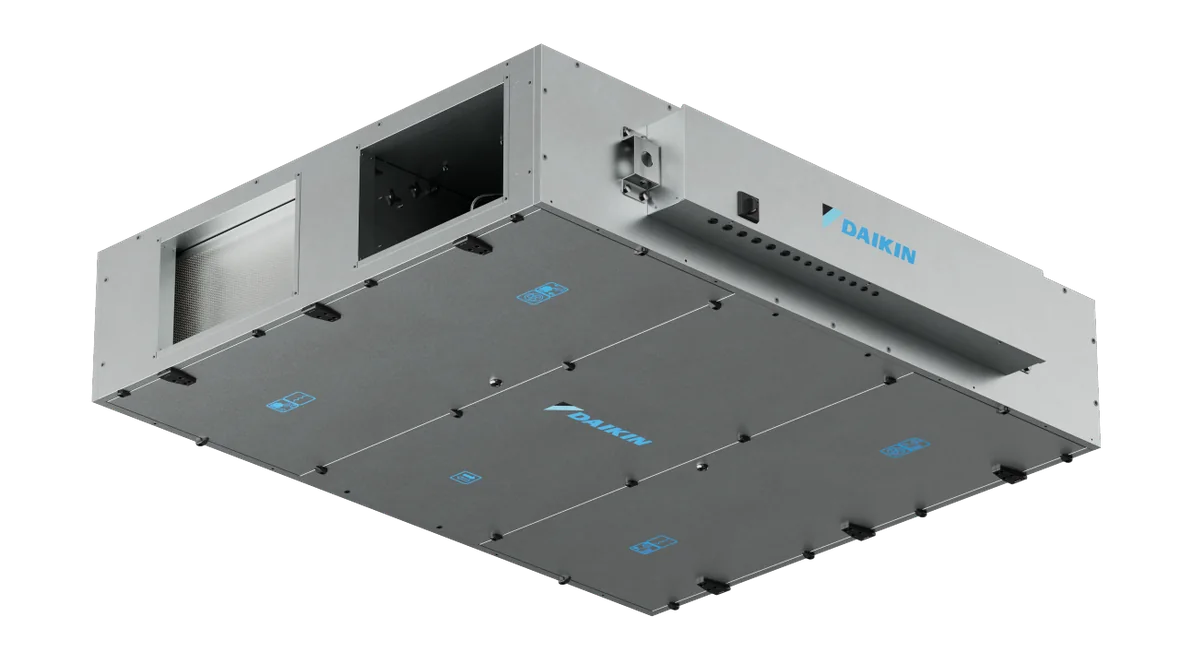

The system adjusts airflow to match actual zone demand; Daikin Compact L is one equipment option.

Applications

Offices, shops, schools, healthcare and administrative premises.

Heat and cooling recovery
Installation in confined spaces
Integration with building controls

Heat recoveryCAV / VAVUp to 4 000 m³/h

Discuss a solution Ask in the HVAC chat

VAV ventilation based on a compact supply and extract air handling unit

02 / 10

Ventilation with an enthalpy heat exchanger

Enthalpy recovery ventilation

Supply and extract ventilation with heat and moisture recovery using Mitsubishi Electric Lossnay LGH-100RVX-E.

Applications

Offices, shops, restaurants and spaces with variable demand.

Enthalpy recovery
Free cooling mode
Coordinated control with a DX system

1 000 m³/hCO₂ controlM-NET / DX

Discuss a solution Ask in the HVAC chat

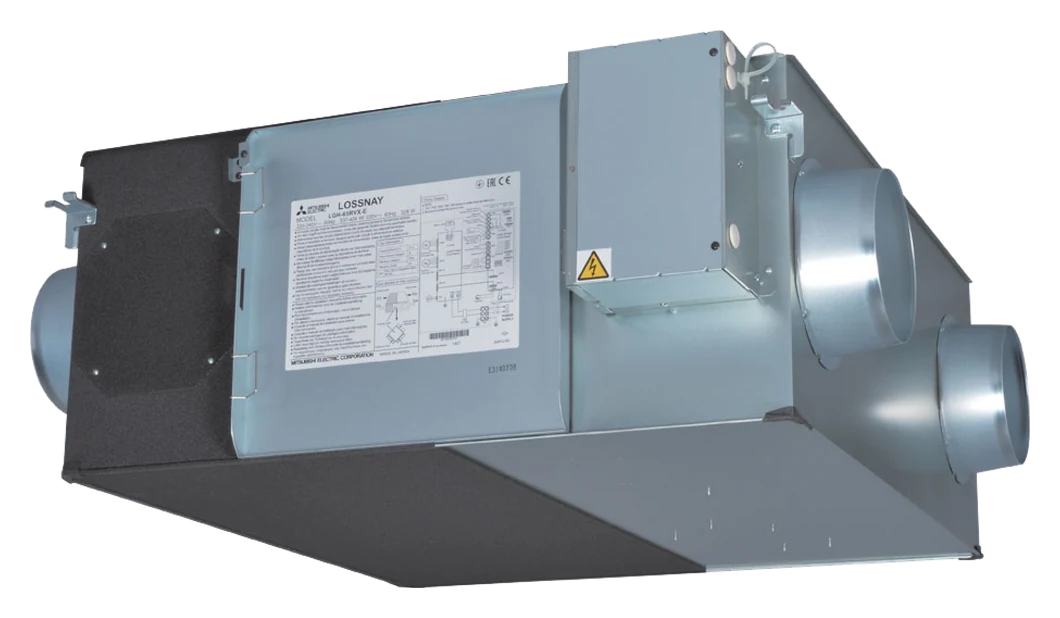

Mitsubishi Electric Lossnay LGH-100RVX-E with an enthalpy heat exchanger

03 / 10

Central supply and extract air handling unit

Central ventilation

A supply and extract ventilation system with heat recovery for year-round operation; AeroStar CrossStar is one AHU option.

Applications

Business centres, schools, public and commercial buildings.

Efficient heat recovery
Reliable winter operation
EC fans and controls

Heat recoveryECYear-round operation

Discuss a solution Ask in the HVAC chat

AeroStar CrossStar central supply and extract air handling unit

04 / 10

Supply air without heat recovery

Once-through ventilation

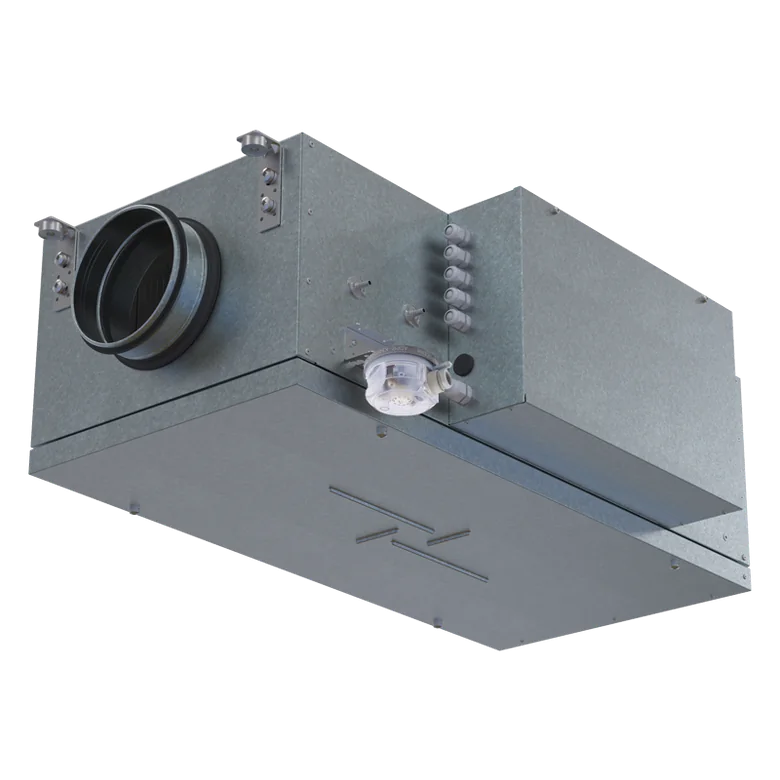

The system filters and conditions outdoor air without heat recovery; VENTS MPA is one possible equipment option.

Applications

Make-up air to replace air removed by local extract or process systems.

Outdoor air filtration
Heating to the design temperature
Integrated operating mode controls

Supply airHeatingControls

Discuss a solution Ask in the HVAC chat

05 / 10

Local supply and extract systems

Ducted ventilation

We use Systemair, VENTS and AeroStar duct fans for systems with different configurations and airflow requirements.

Applications

Offices, toilets, plant rooms and local extract systems.

Energy-efficient EC motors
Low noise levels
Smooth capacity control

ECCircular and rectangular ductsControl

Discuss a solution Ask in the HVAC chat

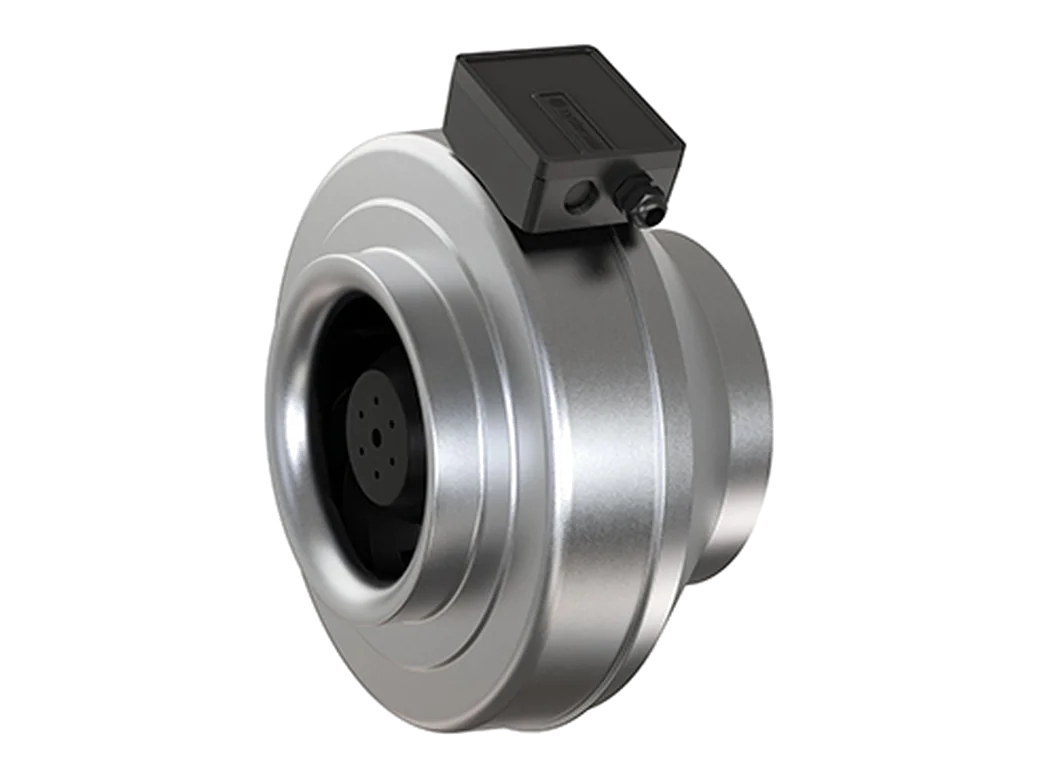

Ducted ventilation with an energy-efficient fan

06 / 10

Extraction of hot and contaminated air

Commercial kitchen ventilation

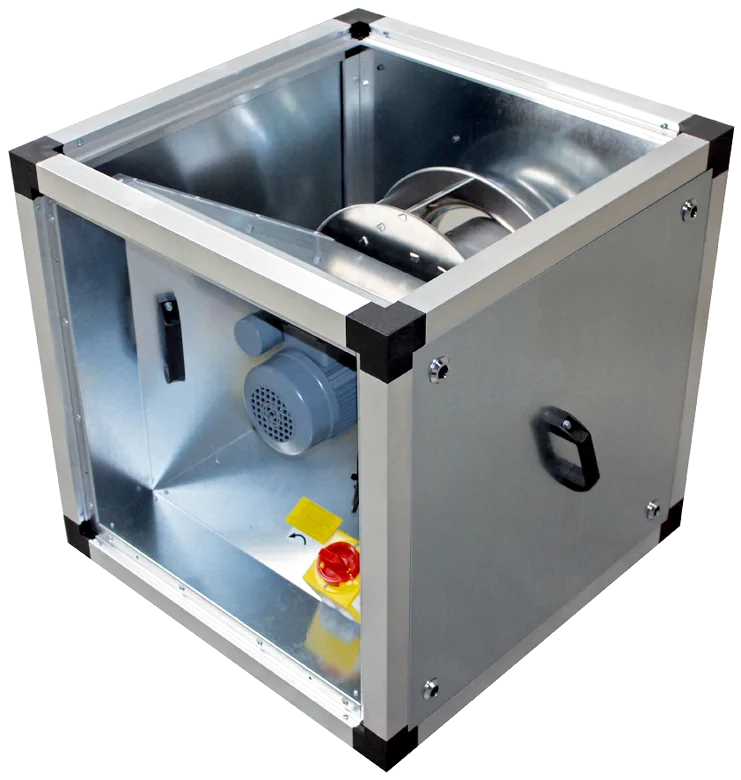

Extract systems for hot, grease-laden air; Systemair MUB/T is one fan option for these conditions.

Applications

Restaurants, cafés, food production facilities and commercial kitchens.

Handling high-temperature air
Motor outside the airstream
Easy access for cleaning and maintenance

Kitchen extractionUp to 120 °CMaintenance access

Discuss a solution Ask in the HVAC chat

07 / 10

Smoke extraction and pressurisation

Fire safety ventilation

Smoke extraction, pressurisation and emergency mode control systems.

Applications

Car parks, shopping centres, industrial and public buildings.

Emergency mode calculations
Integration with fire safety controls
Fan and damper status monitoring

EN 12101-3DampersFire safety controls

Discuss a solution Ask in the HVAC chat

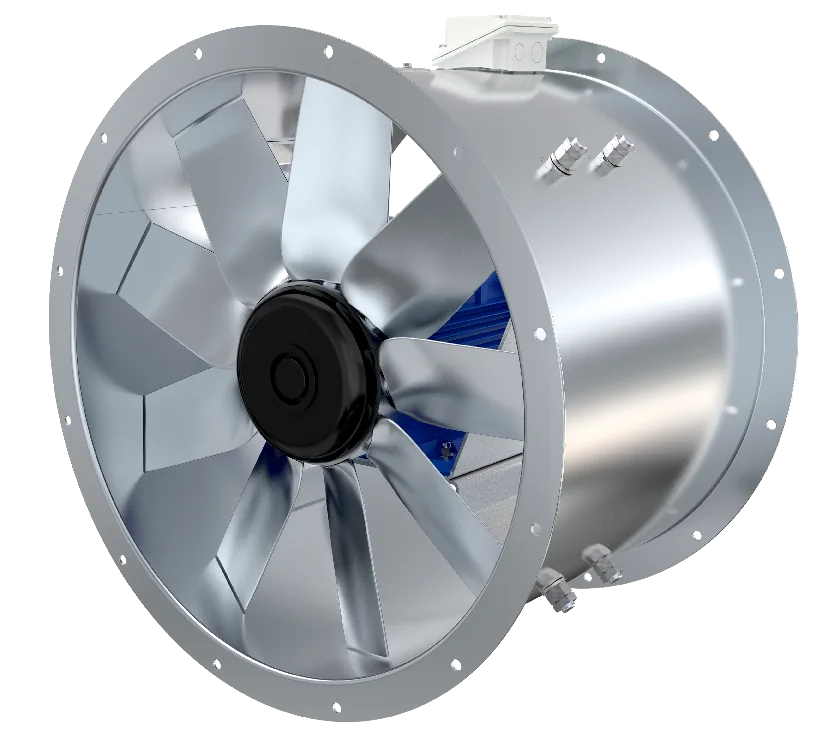

Systemair AXC axial fan for smoke extract systems

08 / 10

Protective structures

Shelter ventilation

Calculated air exchange and filtration for primary and backup operating modes.

Applications

Shelters in schools, offices, residential complexes and workplaces.

Supply air filtration
Redundancy for critical functions
Coordinated system operating modes

FiltrationRedundancyShelters

Shelter solutions: operating modes and examples

Discuss a solution Ask in the HVAC chat

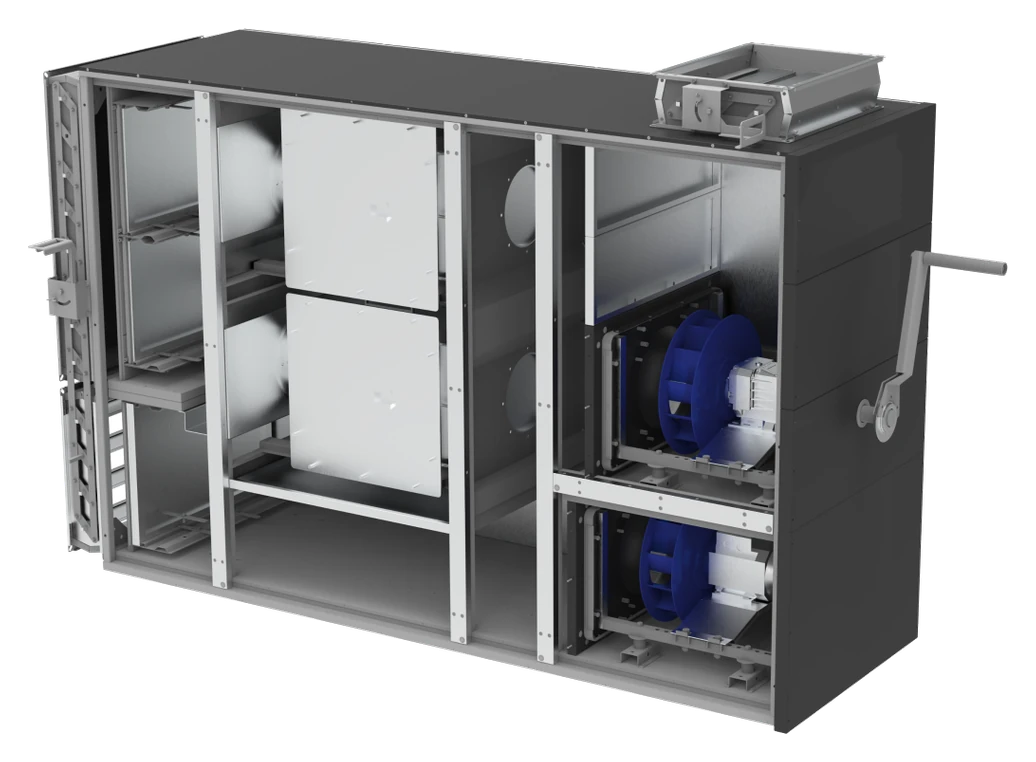

Filtration and ventilation unit for a shelter

09 / 10

Energy recovery from extract air

Rotary heat recovery

The rotor transfers heat from extract air to supply air, reducing the need for supplementary heating. AeroStar GreenStar is one equipment example.

Applications

Offices, shopping and leisure centres, schools and industrial buildings with high air exchange rates.

Reduced air conditioning costs
Control by rotor speed
Heating and cooling in one unit

RotorHeat recoveryControls

Discuss a solution Ask in the HVAC chat

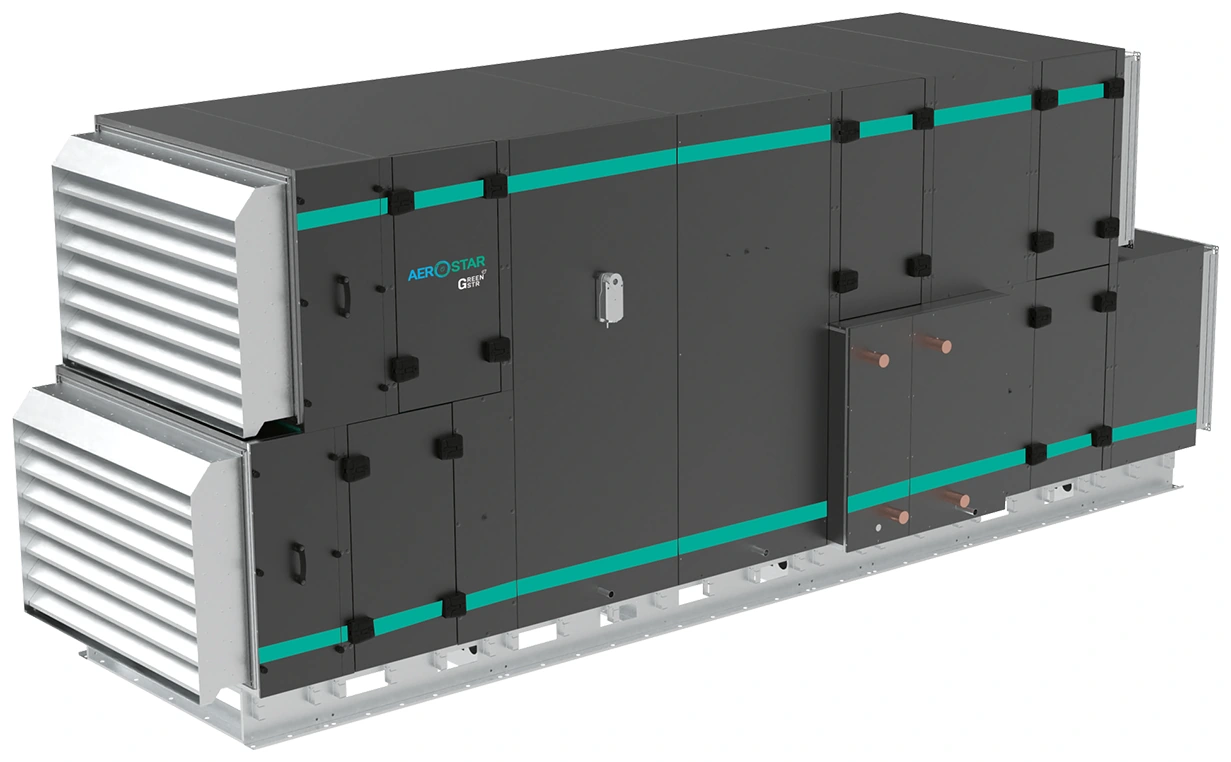

AeroStar GreenStar supply and extract air handling unit with rotary heat recovery

10 / 10

Swimming pool hall humidity control

Swimming pool dehumidification

The ducted system removes excess moisture and maintains the humidity setpoint. Dantherm CDP 125 is one equipment example.

Applications

Indoor private and hotel swimming pools, spas and wellness centres.

Automatic humidity control
Reduced risk of surface condensation
Concealed installation with ducted air supply

DehumidificationHumidistatDucted installation

Discuss a solution Ask in the HVAC chat

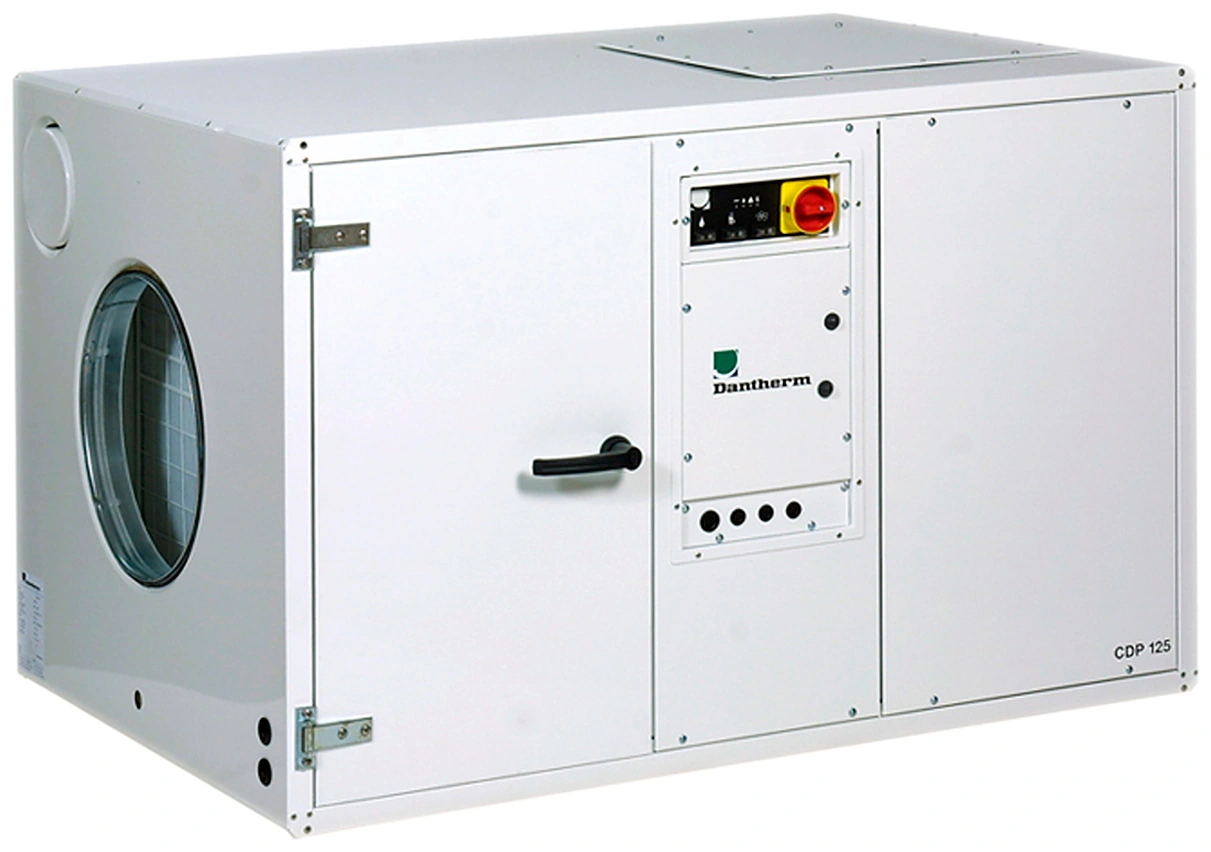

Dantherm CDP 125 ducted dehumidifier for an indoor swimming pool

We design, install and commission supply, extract and combined supply and extract ventilation systems for offices, restaurants, shelters and industrial facilities.

Relevant projects

Examples where the engineering approach has been tested through commissioning and subsequent operation.

FAQ

Frequently asked questions

Brief answers to common questions before design or implementation begins.

How does supply and extract ventilation differ from an open window?

Is heat recovery always necessary?

How can ventilation noise be reduced?

Can an existing ventilation system be upgraded?
